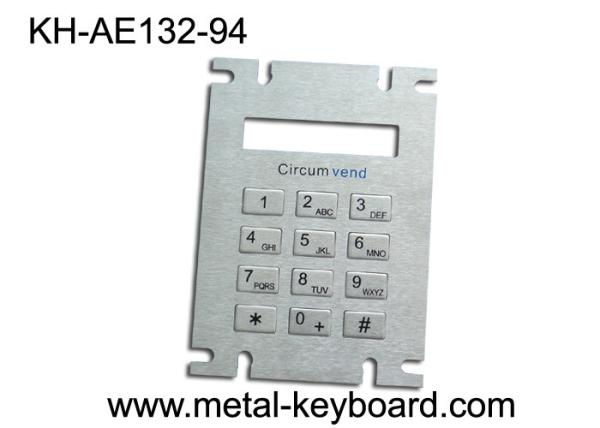

Customized Metal Panel Mount Keypad in 3x4 Matrix for LPG Filling Station

Name: Customized Metal Panel Mount Keypad in 3x4 Matrix for LPG Filling Station
Brand: CNKHTECH
Price: 1 USD

Brand Name : CNKHTECH

Model Number : KH-AE132-94

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 5000pcs/month

Delivery Time : 1-2 weeks

Packaging Details : 2 pcs/EPE/inner box, 30boxes/ctn

Material : Stainless steel

Keys : 12 (3x4 Design)

Protection Level : IP65

Interface : Matrix output

Operating Temperature : -20º C to + 60º C

Product Name : Gas Station Keypad

Dimensions : 132 X 94 (Front Panel)

Mounting Method : Top Panel Mounting Solution

Contact Now

Customized Metal Gas Station Keypad in 3x4 Matrix and Panel Mount

Product Features:

• 12 Keys Gas Station Keypad (customized layout )
• All international language lay-out are available.
• Metal dome connect PCB key switch technology
• Laser engraved characters for excellent durable.
• Matrix output; Also PS/2 or USB connector are available.
• Front panel mounting Solution.

Technical Specifications

Material	Environmental Characteristics	ELECTRICAL DATA
• Stainless steel material, Anti-vandal, IP65 water-proof & long life.	• Operating temperature: -20°C to + 60°C • Storage temperature: - 40°C to + 80°C • Operating RH: 20-95% • Atmospheric pressure: 60-106Kpa.	• Supply Voltage:5.0V DC±5% • Current Rating: appr. 30mA • EMC Standard: It is compliance with the council EMC directive 2004/108/EC • EN55022: 2006+A2:2010 • EN55024: 1998+A1:2001+A2:2003
Operation system	Reliability	Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX	• MTBF >5,0000H • MTTR <30min	• Key switch lifespan:more than 10 Mio actuations • Lifespan > 5 years

Applications:

This keypad is ideal for applications in the public areas and harshest conditions, such as CNG / LPG Dispenser,Gas Station, LPG filling station, LNG gas dispenser, etc.
